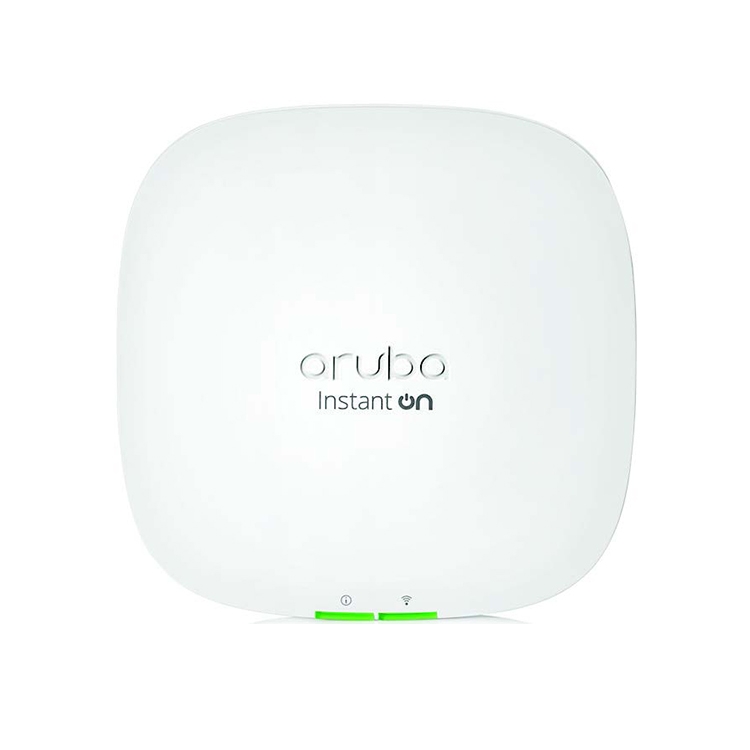

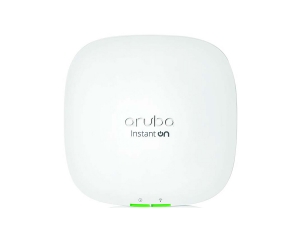

Aruba Instant On AP-22 Access Point

Brand:Aruba
Model:AP-22
Fast 802.11ax, 2X2:2
Wi-Fi CERTIFIED 6™ (Wi-Fi 6)
MU-MIMO performance
Smart Mesh Wi-Fi support
Built-in Wi-Fi router/gateway functionality
Integrated Bluetooth
Easy-to-use web and mobile app for setup and management
Secure Guest Wi-Fi with simple setup
Application classification, control and visibility

Aruba Instant On AP22

Small businesses are facing a number of challenges—challenges that need constant attention. The right technology can help you stay on top of them and stay ahead of the curve. Technologies like the ones found inside the AP22.

To meet the increasing needs and volumes of connected devices, Aruba Instant On is announcing its first Wi-Fi 6 access point: AP22. Delivering higher capacity and greater performance at a competitive price, the AP22 is the perfect access point for small businesses with expanding mobile, cloud, and IoT requirements

Wi-Fi Certified 6TM AP22 access points deliver faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. With the AP22, you can upgrade your Wi-Fi network to boost performance across devices now, while preparing it for more mobile and IoT devices in the future.

SMART MESH

Extend coverage to hard-to-reach spaces where Ethernet cabling may not exist. Set up a Mesh network up in minutes through the app—indoors or out.

MULTI-SITE MANAGEMENT

Manage multiple sites, multiple networks, distributed deployments, and multi-tenancy deployments with ease through our cloud-hosted web interface and mobile app.

PPPoE AND STATIC IP

Every customer has different environment. They might want to authenticate with the ISP’s PPPoE server and provide static IP to the APs.

Specifications:

IN THE BOX

Aruba Instant On AP22 Indoor Access Point, Aruba Instant On AP22 Quick Start guide Combined Ceiling and wall rail mount clip, Ethernet cable

RADIOS

Dual radio for simultaneous dual-band operation

5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)

2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)

MAXIMUM TRANSMIT POWER

5GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain)

2.4Ghz band: +21d

INTERFACES

Uplink Gigabit Ethernet port, with PoE-in support (802.3af)

DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot

PHYSICAL SPECIFICATIONS

160mm x 160mm x 37mm, excluding mount accessories

Weight: 500g

POWER

Power over Ethernet (POE): 802.3af (class 3)

Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)

DC power (12V)

Note: Power sources are sold separately unless you purchase the bundle SKU which comes with power options.

ANTENNAS

Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).

MOUNTING

The access point ships with a white mount clip that can attach to both wall and ceiling.

You can also purchase a mount (R6P90A) for aesthetic design and looks of the APs, to blend seamless into your environment

ENVIRONMENTAL & RELIABILITY

Operating temperature: 0° C to +40° C (+32° F to +104° F)

MTBF: 795khrs (91yrs) at +25° C

INDUSTRY CERTIFICATIONS

UL 2043 plenum rating

EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)

Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

MANAGEMENT OPTIONS

Instant On mobile application (Android & iOS)

Cloud Portal: Portal.ArubaInstantOn.com
