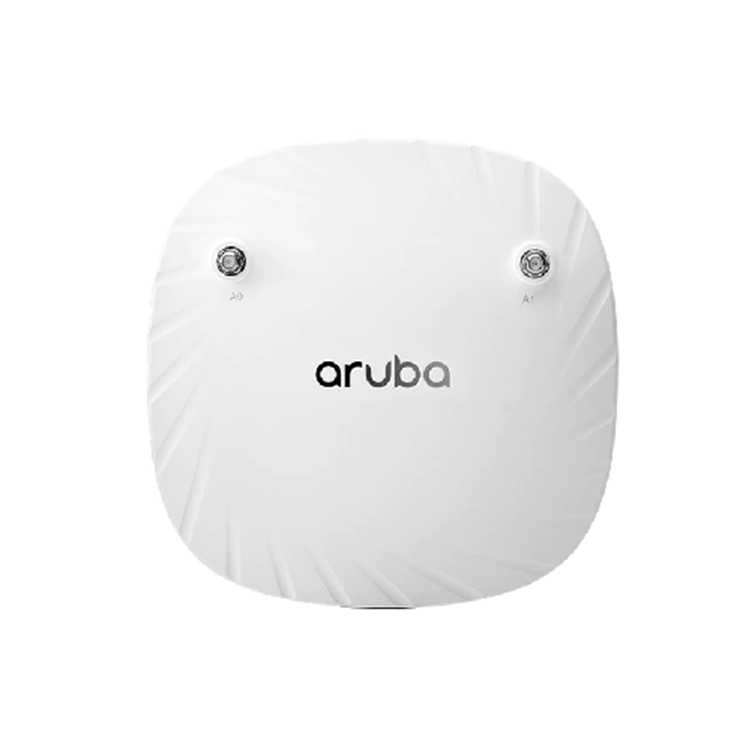

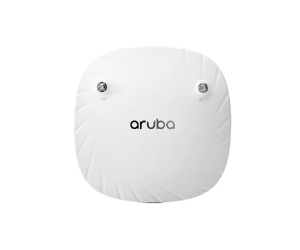

HPE Aruba AP-504 (Internal Antenna) Access Points

Brand:Aruba
Model:AP-504
1.77 Gbps of maximum throughput
WPA3 and Enhanced Open security
Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
OFDMA and MU-MIMO for enhanced multi-user efficiency
IoT-ready Bluetooth 5 and Zigbee support

AP type:

Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO

5GHz radio:

Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously

2.4GHz radio:

Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with individual 2SS HE40 802.11ax client devices or with two 1SS HE40 802.11ax MU-MIMO capable client devices simultaneously

Maximum number of associated client devices:

Up to 256 associated client devices per radio

Maximum number of BSSIDs:

16 BSSIDs per radio

Supported frequency bands (country-specific restrictions apply):

2.400 to 2.4835GHz
5.150 to 5.250GHz
5.250 to 5.350GHz
5.470 to 5.725GHz
5.725 to 5.850GHz

Available channels:

Dependent on configured regulatory domain

Supported radio technologies:

802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units

Supported modulation types:

802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

802.11n high-throughput (HT) support:

HT20/40

802.11ac very high throughput (VHT) support:

VHT20/40/80

802.11ax high efficiency (HE) support:

HE20/40/80

Supported data rates (Mbps):

802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

802.11n/ac packet aggregation:

A-MPDU, A-MSDU

Transmit power:

Configurable in increments of 0.5 dBm

Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):

2.4 GHz band: +21 dBm (18dBm per chain)

5 GHz band: +21 dBm (18 dBm per chain)

Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.

WI-FI ANTENNAS

Two (female) RP-SMA connectors for external dual band antennas (A0 and A1, corresponding with radio chains 0 and 1). Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.7dB in 2.4GHz and 1.3dB in 5GHz.

OTHER INTERFACES

E0: Ethernet wired network port (RJ-45):

Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX
PoE-PD: 48Vdc (nominal) 802.3af/at PoE (class 3 or 4)
802.3az Energy Efficient Ethernet (EEE)

DC power interface:

12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length

USB 2.0 host interface (Type A connector):

Capable of sourcing up to 1A / 5W to an attached device

Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio:

BLE: up to 7dBm transmit power (class 1) and -93dBm receive sensitivity (1Mbps)
Zigbee: up to 6dBm transmit power and -96dBm receive sensitivity Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.3dBi

Visual indicators (two multi-color LEDs):

For System and Radio status

Reset button:

Factory reset, LED mode control (normal/off)

Serial console interface:

Proprietary, micro-B USB physical jack

Security slot:

Kensington security slot

POWER SOURCES AND POWER CONSUMPTION

The AP supports direct DC power and Power over Ethernet

The AP supports direct DC power and Power over Ethernet
When both DC and PoE power sources are available, DC power takes priority over PoE units
Power sources are sold separately; see the 500 Series Ordering Guide for details
When powered by DC or 802.3at (class 4) PoE, the AP will operate without restrictions units
When powered by 802.3af (class 3) PoE and with the IPM feature disabled, the AP will disable the USB port. In the same configuration but with IPM enabled, the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the PoE budget and actual power. The feature restrictions and order can be programmed.

Maximum (worst-case) power consumption (without / with a USB device attached):

DC powered: 8.9W / 14.2W
PoE powered (802.3at): 11.0W / 16.5W
PoE powered (802.3af): 11.0W / 13.5W
This assumes that up to 5W is supplied to the attached USB device

Maximum (worst-case) power consumption in idle mode:

4.3W (DC) or 6.1W (PoE)

Maximum (worst-case) power consumption in deep-sleep mode:

1.7W (DC) or 3.3W (PoE)
