Panasonic BD(Data Archiver)

Author:Candy
Source:www.bluraysupplier.com
Release on :2015-04-11

Jukebox is a large-capacity Blu-ray high-definition data storage products, now the largest storage capacity of up to 768TB, suitable for long-term need to back up large amounts of data enterprises / institutions, such as: government, research institutes, medical, factory, broadcasting, banking, data center.

Why choose Blu-ray disc library as data backup equipment?
Because the library is to use Blu-ray Disc Blu-ray as a storage medium, andBlu-ray DiscSuitable for electronic document archives go save, and

And save the life of more than 50 years, longer than the hard drive to save time, often without data migration, and a single disk to store data more secure.

Here accompanied by a variety of storage products product comparison table, you can clearly see the difference:

Storage Media			Hard disk	LTO (LT05)	BD(Data storage server)
Media	Single-disc capacity		4TB	2.5TB	1.2TB (100GBx12)
	Access time		Less than10ms	57s	450ms
	Data Random Access		Is	No	Is
	Data retention period		3-5Year	3-10Year	50More years
	Save conditioned media regulation		Have to	Have to	Do not need
	Waterproof		No	No	Is
System	Data read/Write speed		150MB / s	160MB / S	216MB / S
	Data read		Semi-contact	Contact	Do not touch
	Power consumption (10Year)	System	31,000kwh	1,100kwh	1,000kwh
	Power consumption (10Year)	Air conditioning	13,000kwh	3,000kwh	400kwh

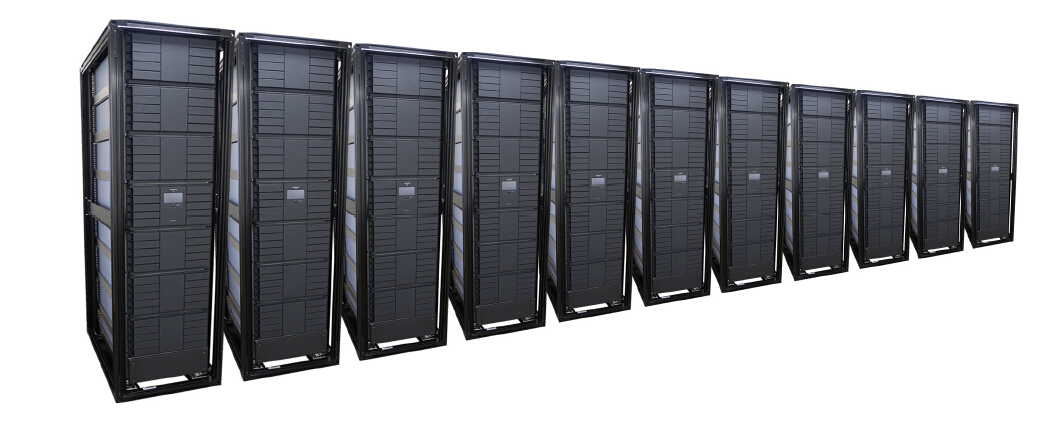

Today to introduce a Panasonic Blu-ray disc library production, he is different from other brands of the library, a CD-ROM operation, more than 1TB of data should be divided, but the library does not need to spin Matsushita data manipulation. A storage unit can also be appropriately increased depending on the amount of traffic data. Low power saving, can reduce power consumption and carbon dioxide emissions.

Specifications are as follows:

Panasonic DA2 Blu-ray disc library specifications
Specification		The bottom of the unit	The basic unit	Expansion unit			Remark
				There are CD-ROM	No optical drive
Size(LongxWidthxHigh)		446x730x171mm (4U)	447 x 917 x 262mm (6U)			EIA 19 inch Cabinets
Weight (Approx)		18kgs	44kgs	47kgs	32kgs	Free disk folder
Power		TBD, 24VDC	5A, 24VDC	5A, 24VDC		When data is written
I / F			10Gbit iSCSI, 6Gbit SAS or 8Gbit FC
CD		Special Blu-ray Disc				1.2TBDisk folder
Read and write data			Single CD-ROM		Optional	12CD-ROM/Group
Online Capacity			1.2TB			TB = 10¹²bytes
Maximum capacity			91.2TB (76 slots)
Speed			216MB / s max			Read/Write
Access time			& Lt; 1,100ms (Typical)			In Active state
		TBD				Switch plate clip
Environment	Action	10 - 40 ° C, 20 - 80% RH
	Transport	-20 - 60 ° C, 10 - 90% RH
Encryption			XTS-AES256

For product details,Please contact usWe sincerely for your service.
