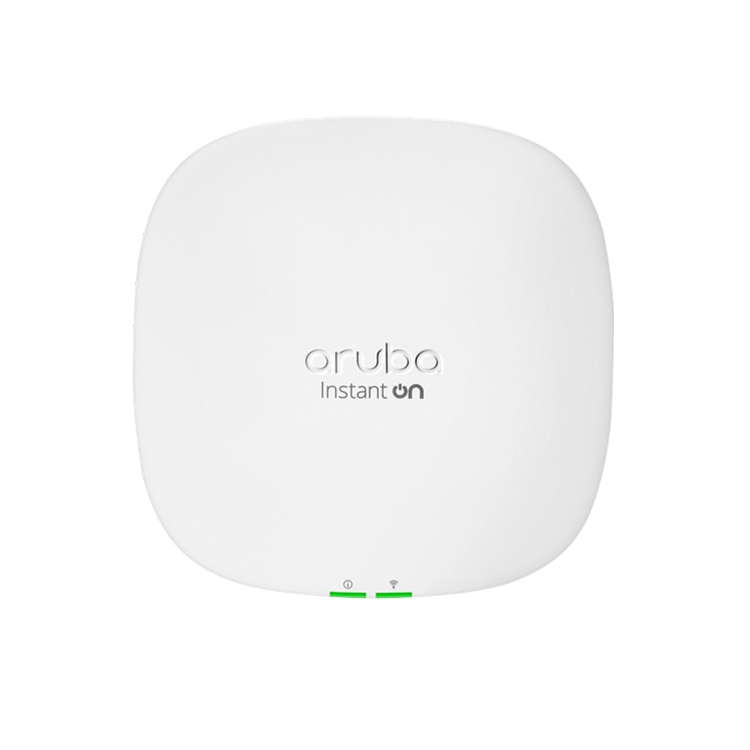

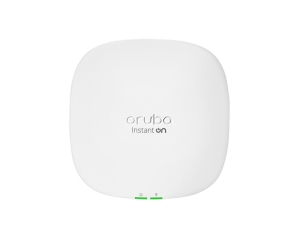

Aruba Instant On AP-25 Access Point

Aruba Instant On AP-25 Access Point

  • Brand:Aruba
  • Model:AP-25
  • Ultra-fast 802.11ax, 4x4:4
  • 2.5 Gigabit Ethernet uplink port
  • 160MHz client bandwidth support
  • Mesh backhaul operating at 160MHz1
  • Wi-Fi CERTIFIED 6TM (Wi-Fi 6)
  • MU-MIMO performance
  • Smart mesh Wi-Fi support
  • Integrated Bluetooth
  • Easy-to-use web and mobile app for setup and management
  • Secure guest Wi-Fi with simple setup

Aruba Instant On AP25

The rise of the remote and hybrid workplace has placed increased pressure on business networks. Existing Wi-Fi infrastructure is struggling to support the explosion of devices and bandwidthhungry applications — all contributing to spotty video calls and sluggish download speeds.

The Aruba Instant On AP25, a 4x4 Wi-Fi 6 access point, is designed to meet the increasing volume of connected devices. Delivering superior performance, coverage, and speed at a competitive price, the AP25 is the perfect access point for small and growing businesses.

The Wi-Fi Certified 6TM AP25 delivers faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. AP25 improves efficiency and reduces congestion for networks with many connected devices, making it ideal for high-density environments. And with 4x the capacity of 802.11ac access points, the AP25 provides exceptional user experience, allowing businesses to serve more customers with higher speed and less congestion.

Features of the AP25 include orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and target wake time (TWT). With up to 4 spatial streams (4SS) and 160MHz channel bandwidth (HE160), the AP25 provides groundbreaking wireless capabilities for businesses looking to boost performance and future-proof their networks.

Next-Generation 802.11ax Wi-Fi Features

AP25 is a Wi-Fi CERTIFIED 6TM (Wi-Fi 6) access point that brings higher capacity, efficiency, and performance to small and growing businesses with dense deployments. With a maximum aggregate data rate of 5.3 Gbps, AP25 access points deliver the speed and reliability small businesses need.

2.5g Ethernet Uplink Port And 160mhz Client Bandwidth Support

Availability of 2.5G uplink port and wider channel bandwidth delivers faster Wi-Fi speeds for activities like high-def video streaming and gaming.

160mhz Client Bandwidth Support

With 160MHz bandwidth support in 11ax, HE160 mode delivers higher performance with 160MHz supported clients. The mesh performance can be doubled with the 160MHz bandwidth support on 5GHz backhaul.

Orthogonal Frequency-Division Multiple Access (OFDMA)

Allows access points (APs) to handle multiple Wi-Fi 6-capable clients on each channel simultaneously — regardless of device or traffic type. This improves efficiency by boosting overall capacity while reducing latency.

Target Wake Time (TWT)

Ideal for devices that communicate infrequently, TWT establishes a schedule for clients to communicate with an AP. This helps reduce power consumption, extending battery life.

Multiuser, Multiple Input, Multiple Output (MU-MIMO)

AP25 supports MIMO, allowing service to multiple clients (Wi-Fi 5 and Wi-Fi 6) at the same time.

1024-Quadrature Amplitude Modulation (1024-QAM)

Enables a 25% data increase over 256 QAM, improving throughput to access points and devices.

Trusted Platform Module (TPM)

All Aruba Instant On access points have an installed TPM for secure storage of credentials, keys, and boot codes.

Basic Service Set Coloring (BSS Coloring)

Allows the network to assign a "color" tag to a channel and reduce the threshold for interference. Network performance is improved because APs on the same channel can be closer together and still transmit at the same time.

Aruba Advanced Cellular Coexistence (ACC)

Uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small-cell or femtocell equipment.

Low Density Parity Check (LDPC)

Delivers high-efficiency error correction for increased throughput.

Transmit Beamforming (TXBF)

Delivers increased signal reliability and range.


In the Box
  • Aruba Instant On AP25 Indoor Access Point
  • Aruba Instant On AP25 Quick Start Guide
  • Combined ceiling and wall rail mount clip
  • Ethernet cable
  • Dual radio for simultaneous dual-band operation
  • 5 GHz 802.11ax 4x4 MIMO for up to 4.8 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
  • 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Maximum (Aggregate, Conducted Total) Transmit Power (Limited By Local Regulatory Requirements)
  • 5GHz band: +24dBm (+18dBm per chain, 6dB MIMO gain)
  • 2.4Ghz band: +21dBm (+18dBm per chain, 3dB MIMO gain)
  • Uplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at)
  • DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot
Physical Specifications
  • 200mm x 200mm x 45mm, excluding mount accessories
  • Weight: 775g
  • Power over Ethernet (POE): 802.3at (class 4)
  • Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC)
  • DC power (12V)
Notes: Power sources are sold separately unless you purchase the bundle SKU which comes with power options.
  • Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.77 dBi in 2.4GHz and 4x4 MIMO with peak antenna gain of 4.55 dBi in 5GHz (of the effective, combined pattern for both antennas in each band)
  • The access point ships with a white mount clip that can attach to both walls and ceilings
  • Mounts that match the design of the APs can be purchased separately
Environmental & Reliability
  • Operating temperature: 0° C to +40° C (+32° F to +104° F)
  • MTBF: 670khrs (76yrs) at +25° C
Industry CertificationsEN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
  • Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Management Options
  • Instant On mobile application (Android & iOS)
  • Cloud Portal:
Warranty & Support
  • Aruba Instant On 2-year* warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product. Foundation Care provides extended support for APs. The SKUs are HK1Y0E (3 years) and H30GZE (5 years).
